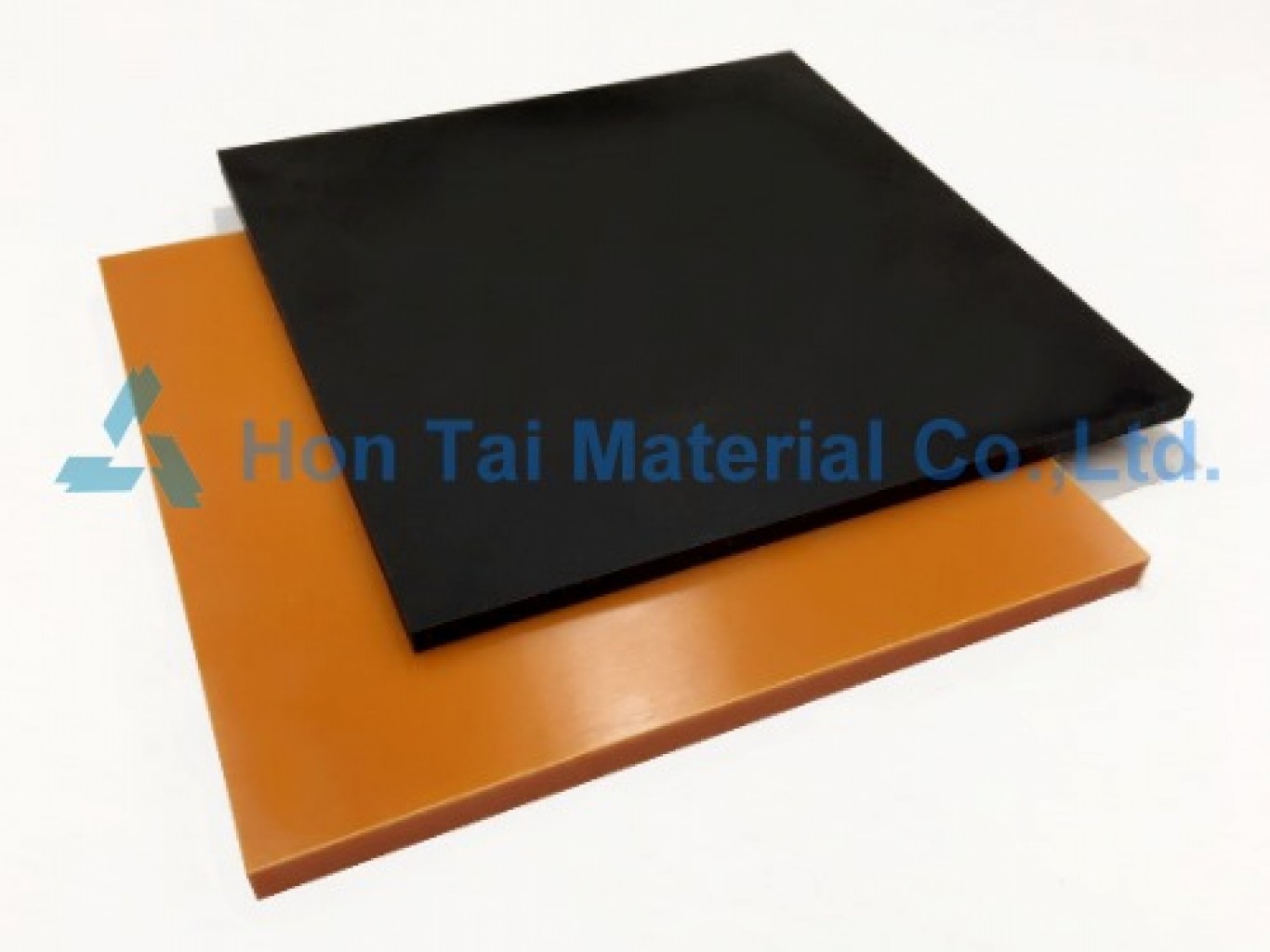

Paper-based Phenolic Laminate(hot punching)

Paper-based Phenolic Laminate(hot punching)

Model number:HT-P2002

Thickness:3-100mm

Color: Natural/Black

Standard size:1020*1020mm/1020*1220mm

Resin: Phenolic

Reinforcement: wood pulp paper

Flame Classification:(UL94)94HB

UL/ANSI:XP

JIS:PL-PEM

Characteristics:

  1. suitable for hot-punching
  2. tough than cold-punching phenolic laminate
  3. good intermediate electric property

Applications: electrical and mechanical components/ PCB drilling or routing
